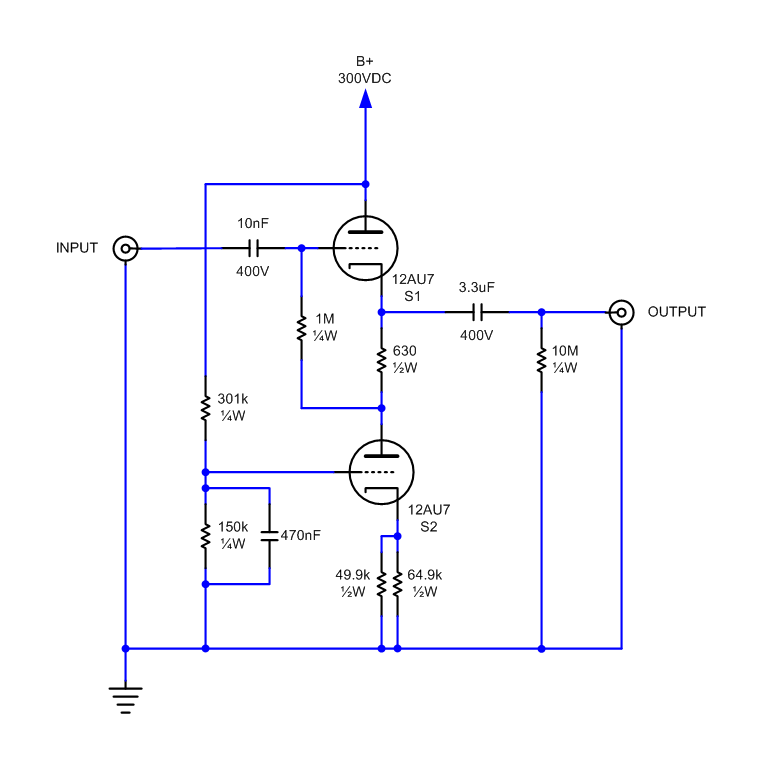

This is the buffer stage, which is implemented as a cathode follower with an active load using both halves of a 12AU7.

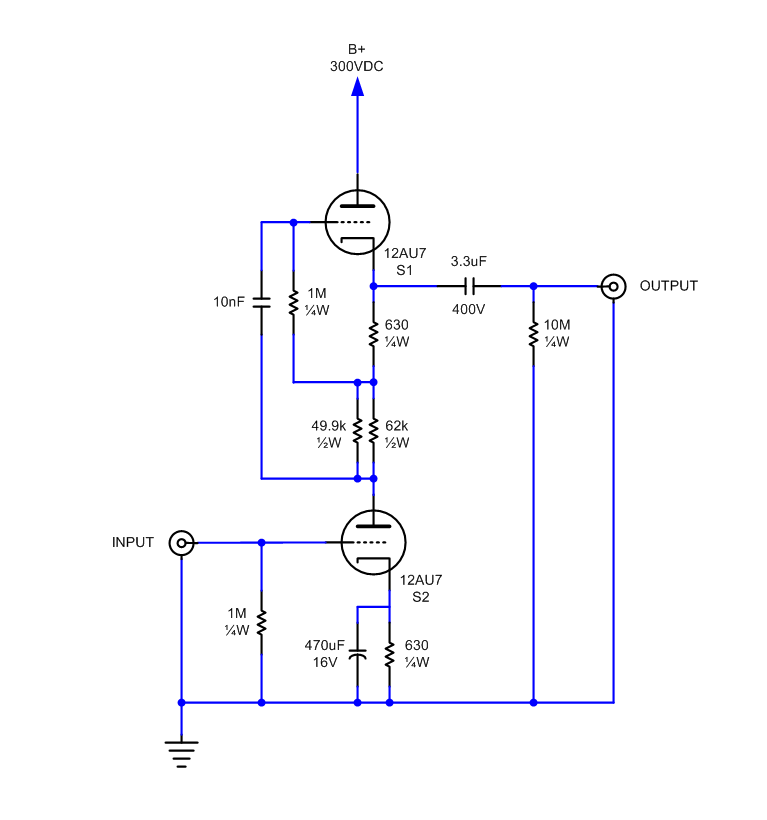

This is the preamplifier stage, which is implemented as a mu-follower using both halves of a 12AU7.
